TCS

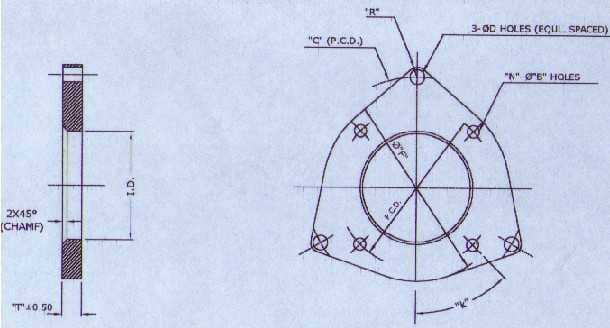

DRAWING FOR TCS
|
S. No. |
DIMENSIONS |
2" N.B. |
21/2" N.B. |
3'N.B.. |
4"N.B.. |
5"N.B.. |
6"N.B.. |
8"N.B.. |
10" N.B. |
12" N.B. |
14" N.B. |
16"N.B. |
| 1. | "T"(Flange thickness) | 15.87 | 15.87 | 15.87 | 19.05 | 19.05 | 19.05 | 25.4 | 25.4 | 25.4 | 31.75 | 31.75 |
| 2. | I.D.(Flange I.D) | 66.04 | 66.04 | 75.94 | 102.1 | 128.0 | 152.9 | 206.0 | 260.0 | 313.9 | 356.1 | 405.9 |
| 3. | ØF | 152.40 | 177.80 | 190.5 | 228.6 | 254.0 | 279.4 | 342.9 | 406.4 | 482.6 | 533.4 | 596.9 |
| 4. | "N"( No of holes for mounting bolt. | 4 | 4 | 4 | 8 | 8 | 8 | 8 | 12 | 12 | 12 | 16 |
| 5. | "B"(Dia of mounting bolt hole) | 19.05 | 19.05 | 19.05 | 19.05 | 22.2 | 22.2 | 22.2 | 25.4 | 25.4 | 28.5 | 28.5 |
| 6. | "P.C.D."(Mounting for Bolt. | 120.6 | 139.7 | 152.4 | 190.5 | 215.9 | 241.3 | 298.5 | 361.9 | 431.8 | 476.3 | 539.7 |
| 7. | "K"(Deg of Mounting Bolt hole) | 45° | 45° | 45° | 22 1/2° | 22 1/2° | 22 1/2° | 22 1/2° | 15° | 15° | 15° | 11 1/2° |
| 8. | "D"(Dia of TIE ROD hole) | 11.11 | 11.11 | 11.11 | 14.28 | 17.46 | 20.63 | 26.98 | 26.98 | 33.33 | 41.27 | 41.27 |
| 9. | "R"(Radius) | 12.70 | 12.70 | 12.70 | 15.87 | 19.05 | 22.22 | 31.75 | 31.75 | 34.92 | 41.27 | 41.27 |
| 10. | "C"(P.C.D. of TIE ROD hole) | 177.8 | 203.20 | 215.90 | 260.40 | 292.10 | 323.90 | 400.00 | 476.30 | 565.20 | 622.30 | 685.80 |
