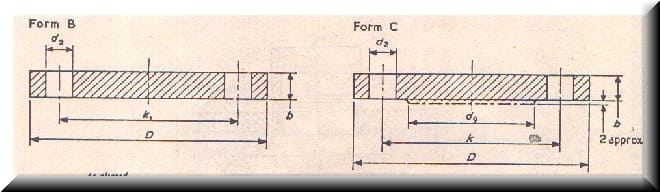

TA BLE 16/8 STEEL PLATE BLANK FLANGES

Nominal pressure 16 bar (1 bar = 100000 N/m2)

Nom size FLANGE Spigot d9 Bolting Drilling
D b No. d2 k
10 90 14 - M12 4 14 60
15 95 14 - M12 4 14 65
20 105 16 - M12 4 14 75
25 115 16 - M12 4 14 85
32 140 16 - M16 4 18 100
40 150 16 - M16 4 18 110
50 165 18 - M16 4 18 125
65 185 18 55 M16 4 18 145
80 200 20 70 M16 8 18 160
100 220 20 90 M16 8 18 180
125 250 22 115 M16 8 18 210
150 285 22 140 M20 8 22 240
175 315 24 165 M20 8 22 270
200 340 24 190 M20 12 22 295
250 405 26 237 M24 12 26 355
300 460 28 285 M24 12 26 410
350 520 30 332 M24 16 26 470
400 580 32 380 M27 16 30 525
450 640 34 428 M27 20 30 585
500 715 36 475 M30 20 33 650
