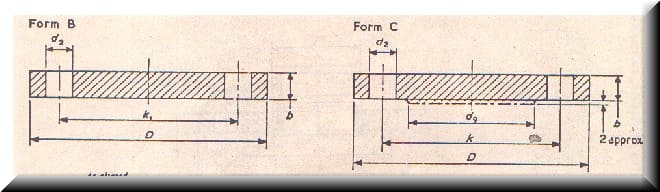

TABLE 10/8 STEEL PLATE BLANK FLANGES
Nominal pressure 10 bar (1 bar = 100000 N/m2)
| Nom size | FLANGE |
Spigot d9 |
Bolting | ..........Drilling......... | |||
| D | b | No. | d2 | k | |||
| 200 | 340 | 24 | 190 | M20 | 8 | 22 | 295 |
| 250 | 395 | 26 | 237 | M20 | 12 | 22 | 350 |
| 300 | 445 | 26 | 285 | M20 | 12 | 22 | 400 |
| 350 | 505 | 26 | 332 | M20 | 16 | 22 | 460 |
| 400 | 565 | 26 | 380 | M24 | 16 | 26 | 515 |
| 450 | 615 | 28 | 428 | M24 | 20 | 26 | 565 |
| 500 | 670 | 28 | 475 | M24 | 20 | 26 | 620 |
