TABLE 160/3 STEEL PLATE FLANGES FOR WELDING

Nominal pressure 160 bar (1 bar = 100000 N/m2)

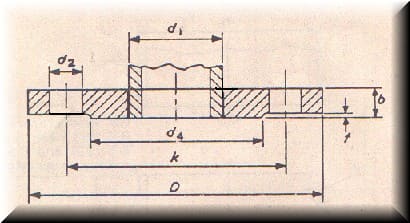

Nom size pipe o.d. d1 FLANGE Raised face Bolting Drilling
D b d4 f No. d2 k
10 17.2 100 22 40 2 M12 4 14 70
15 21.3 105 24 45 2 M12 4 14 75
20 26.9 130 26 58 2 M16 4 18 90
25 33.7 140 26 68 2 M16 4 18 100
32 42.4 155 28 78 2 M20 4 22 110
40 48.3 170 30 88 3 M20 4 22 125
50 60.3 195 34 102 3 M24 4 26 145
65 76.1 200 36 122 3 M24 8 26 170
80 88.9 230 40 138 3 M24 8 26 180
100 111.3 265 44 162 3 M27 8 30 210
125 139.7 315 54 188 3 M30 8 33 250
150 168.3 355 62 218 3 M30 12 33 290
175 193.7 390 68 260 3 M33 12 36 320
200 219.1 430 76 285 3 M33 12 36 360
250 273 515 90 345 3 M39 12 42 430
300 323.9 585 106 410 4 M39 16 42 500
