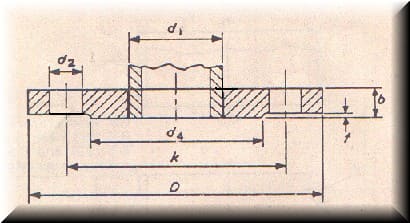

TABLE 2.5/3 STEEL PLATE FLANGES FOR WELDING

Nominal pressure 2.5 bar (1 bar = 100000 N/m2)

Nom size pipe o.d. d1 ......FLANGE...... Raised face Bolting ..............Drilling.................
D b d4 f No. D2 k
10 17.2 75 12 35 2 M10 4 11 50
15 21.3 80 12 40 2 M10 4 11 55
20 26.9 90 14 50 2 M10 4 11 65
25 33.7 100 14 60 2 M10 4 11 75
32 42.4 120 16 70 2 M12 4 14 90
40 48.3 130 16 80 3 M12 4 14 100
50 60.3 140 16 90 3 M12 4 14 110
65 76.1 160 16 110 3 M12 4 14 130
80 88.9 190 18 128 3 M16 4 18 150
100 114.3 210 18 148 3 M16 4 18 170
125 139.7 240 20 178 3 M16 8 18 200
150 168.3 265 20 202 3 M16 8 18 225
200 219.1 320 22 258 3 M16 8 18 280
250 273 375 24 312 3 M16 12 18 335
300 323.9 440 24 365 4 M20 12 22 395
350 355.6 490 26 415 4 M20 12 22 445
400 406.4 540 28 465 4 M20 16 22 495
450 457.2 595 30 520 4 M20 16 22 550
500 508 645 30 570 4 M20 20 22 600
600 609.6 755 32 670 5 M24 20 26 705
700 711.2 860 34 775 5 M24 24 26 810
800 812.8 975 38 880 5 M27 24 30 920
900 914.4 1075 42 980 5 M27 24 30 1020
1000 1016 1175 46 1080 5 M27 28 30 1120
1200 1220 1375 36 1280 5 M27 32 30 1320
1400 1420 1575 42 1480 5 M27 36 30 1520
1600 1620 1790 46 1690 5 M27 40 30 1730
1800 1820 1990 52 1890 5 M27 44 30 1930
2000 2020 2190 58 2090 5 M27 48 30 2130
